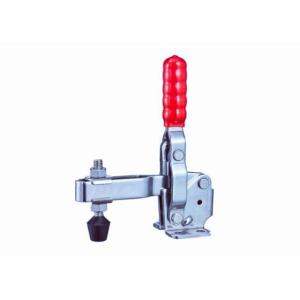

500lbs Vertical Handle Toggle Clamp

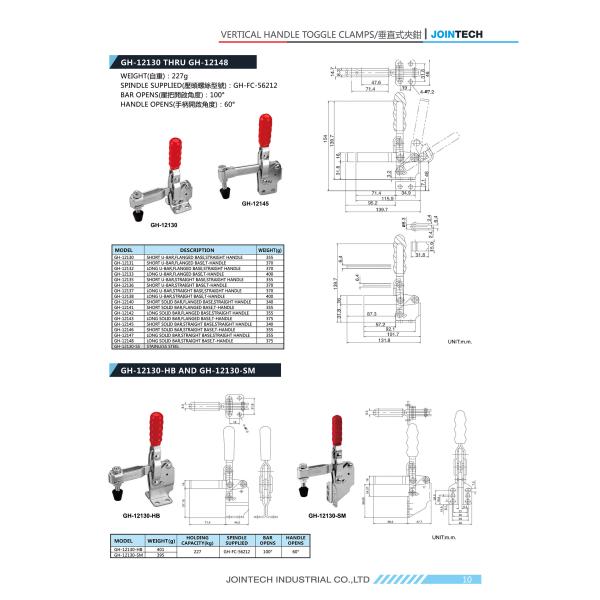

500lbs Capacity Metal Holding Vertical Handle Toggle Clamp Destaco 207-U / GH-12130

Manual Quick Release Vertical Hold Down Toggle Clamp Destaco 207-U / GH-12130

Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Automobile Industry

1. Welding inspection of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for inspecting jigs. Main application models: 12130,12135,12137,304-C,302-F etc.

2. Welding of various vehicle frames and accessories (small sheet metal parts) is used as positioning bolts and fixtures for welding jigs.
Main application models: 702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.

3. Welding and welding inspection of various door panels are used as positioning bolts and fixtures for welding and testing molds.
Main application models: 702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.

4. Stamping of all kinds of vehicle frames, accessories (small sheet metal parts) and sheet metal door panel parts is used as positioning bolts and fixtures for stamping parts inspecting jigs. Main application models: 12130,12135,11412,302-F,36020 etc.

5. Welding of various automobile roof and side windows is used as fixtures for welding fittings. Main application models: 11412,203-F,21502-B.

Bicycle Industry (including baby strollers and other non-motor vehicles)

1. For welding of car frames (commonly known as a tripod), a manual toggle clamp is used as positioning bolts and fixtures for assembly (or molding) welding molds. Main application models: 30509,30609,101-EL,10247 etc.

2. Welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding fittings.
Main application models: 11412,203-F,101-E,304-E,36020 etc.

Electronics Industry

1. A manual toggle clamp is used as fittings in electronic production equipment, such as crest welders, reflow soldering machines, DDC machines, reflow ovens, stretching machines, and screen printing machines. Main application models: 101-A,102-B,40341,80325 etc.

2. For the production of electronic components such as filters and amplifiers, manual toggle clamps are used on test equipment and test jigs.
Main application models: 12130,101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.

3. In the production of various electronic products, equipment, and electrical wiring harness for household appliances, manual toggle clamps are used in the inspection process, and in some factories, manual toggle clamps are used in the assembly process for "test fixtures" and " assembly fixtures." Main application models: 13005,101-A,13009,201,201-A,20800,36070 etc.

4. No matter which way the circuit board is manufactured in point, manual toggle clamps are used on "test jigs" for "online testing" and "testing line." Main application models: 101-A,201,10250,10250-U,304,305 series etc.
5. All electronic products- such as televisions, radios, DVD, electronic doorbells, and computers, etc., are all with circuit boards which are composed of PCB boards and electronic components inserted and attached to them. There are two ways to insert and attach electronic components to PCB boards:

(1) Automatic, SMT using products, AI automatic equipment to insert and attach electronic components; this method does not require a manual toggle clamp.

(2) Assembly line, divided into the card slot type and ring type. A manual toggle clamp is generally used in the ring-type assembly line of inserting and attaching electronic components on PCB boards, which is used to fix PCB boards. No manual toggle clamp is needed in the card slot type production line. Main application models: 101-A,20400,201,201-A,20100,22005,20800,20300,22100 etc.
